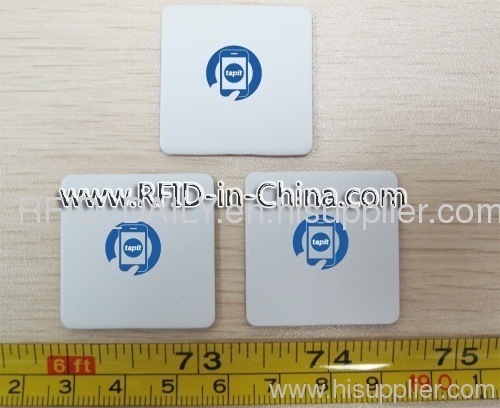

NFC Sticker tags forMetal Surface

Odd-come-shortly, thelatest series of NFC Stickers have been released by DAILY RFID,a leading professional NFC products manufacturer, in order to help customersrealize the potential of NFC technology and facilitate NFCstickers become a part of life. Although NFC (near field communication)technology is very promising, the present application of NFCstickers have not yet been universal. But luckily, NFC stickersfrom DAILY are very hopeful to make NFC closer to people's everydaylife.

Description

LF and HFOn-Metal Tag-MT009 is specially developed for the NFC (Near Field Communication)and Mobile Phone, Computer tracking. It can be printed with the logo as well asthe UID number. It is able to be encoded and programmed with the RFID Reader andWriter. It is available with 3M glue on the back side and can be direct used onthe metal surface.

This RFIDmetal tag is also available for customization and OEM.

Specification

1. Type: Contactless R/O orR/W

2. OperatingFrequency: LF(125KHz) or HF (13.56MHz)

3. IC Available at 125KHz:EM4102, EM4100, EM4001, TK4100, GK4100

4. IC Available at13.56MHz:        I-CODE (ISO15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K (ISO 14443A), Mifare®4K(ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request

5. Size: 30*30mm,Thickness:1mm

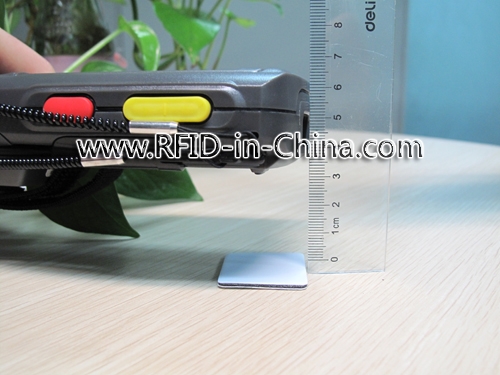

6. ReadingDistance: Up to 8cm

7. Material: Epoxy / SpecialMagnetic Material / 3M® Glue

8. Operating Temperature:-40º C to +80º C

9. Storage Temperature:-40º C to +100º C

CompetitiveAdvantage

1.         Waterproof IP68

2.         100, 000 times reading &writing

3.         Excellent read/writeperformance on any metal surface

4.         Exceptional temperature andharsh environmental performance

5.         RoHSCompliant

6.         ISO15693 and ISO18000 -3 standards

7.         Encodingavailable

We can design and developRFID tags and RFID readers in different sizes and different shapes for yourdifferent requirements. For more info about RFID products please kindly visitour website or mail to us, our saleswill contact you as soon as possible.
